Isostatic vs. Extruded Graphite: Why the Difference Matters
Choosing between isostatic and extruded graphite starts with understanding how each material is manufactured and how that affects performance. Both are synthetic graphite materials, but their forming processes create different grain structures and material characteristics. These differences can influence strength, uniformity, machinability, dimensional stability, and performance in demanding applications. There is no universal “best” graphite grade. The right choice depends on what your process requires from the material.
What Is Isostatic Graphite?
Isostatic graphite is formed isostatically by applying pressure uniformly in all directions. This manufacturing method produces a fine-grain material with a highly uniform structure and properties that remain relatively consistent regardless of orientation. This uniformity makes isostatic graphite well suited for applications requiring precision, dimensional stability, intricate machining, and consistent material performance. Its fine grain structure also supports detailed features and tight tolerances. As a result, isostatic graphite is commonly considered for demanding applications where accuracy and material consistency are priorities. However, these characteristics do not automatically make it the right choice for every component. Size, operating environment, performance requirements, and cost should all influence material selection.
What Is Extruded Graphite?
Extruded graphite is produced by forcing a graphite mixture through a die. This process creates a directional grain structure, meaning certain material properties can vary depending on orientation. Extrusion is particularly effective for producing larger or longer graphite sections with consistent cross-sectional profiles. This makes extruded graphite a practical option for industrial components where size, geometry, and cost efficiency may take priority over fine-grain uniformity. Its directional structure should be considered during component design and machining. Understanding how the finished component will be loaded and used is essential when determining whether an extruded grade can deliver the required performance.
How to Choose the Right Graphite Grade for Your Process
Material selection should begin with the application, not the manufacturing method. Consider component dimensions, geometry, tolerances, operating temperature, mechanical loads, and required material uniformity. A precision component with intricate features may benefit from fine-grain isostatic graphite, while a larger industrial component may be better suited to an extruded grade. Purchase price is only one consideration. Machinability, service life, consistency, and operating requirements all contribute to the total value of a graphite component. The goal is straightforward: match the material properties to the demands of the process.
Find the Right Graphite Solution with Ei6
Choosing the right graphite grade requires more than comparing specifications on a data sheet. With more than 50 years of graphite expertise, Ei6 works with customers to evaluate application requirements and identify materials suited to their process. Our graphite knowledge and precision machining capabilities support applications where material selection, dimensional accuracy, and reliable performance matter. Whether you are evaluating isostatic graphite, extruded graphite, or another specialty grade, Ei6 can help identify the material best suited to your application.
Contact Ei6 to discuss your application and find the graphite solution best suited to your process.
Why the Forming Method Matters
When comparing isostatic graphite vs. extruded graphite, the differences begin with how each material is formed. The forming method influences grain structure, isotropy, available sizes, and other properties engineers consider when specifying graphite for an industrial application.

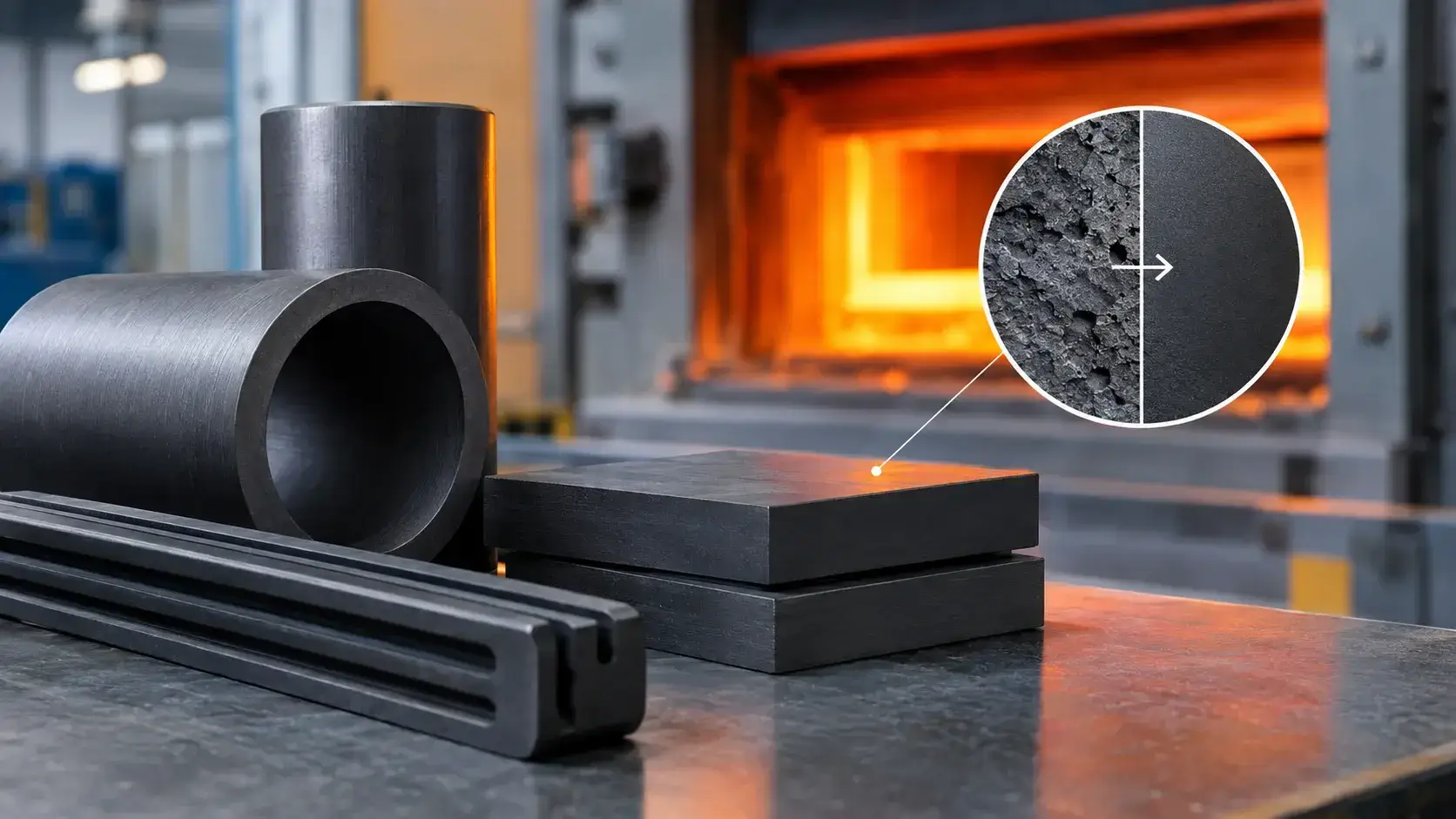

Both materials begin with carbon-based raw materials that are formed, baked, and graphitized. Isostatic pressing applies pressure uniformly in all directions around the material, creating a fine-grain structure product with a high degree of isotropy. Extrusion forces the prepared material through a die, creating a directional structure with properties that vary based on orientation.
Understanding these structural differences provides a starting point for determining which form fits the application.
Isostatic vs. Extruded Graphite: Property Comparison
Grain structure, density, flexural strength, electrical resistivity, isotropy, available sizes, and cost can all influence material selection.
Isostatic, also called iso-molded, graphite typically has a finer, more uniform grain structure and a high degree of isotropy. These characteristics make it well suited to applications where dimensional stability, detailed machining, and material uniformity are priorities. For precision applications, engineers can also evaluate machined specialty graphite based on their specific requirements.

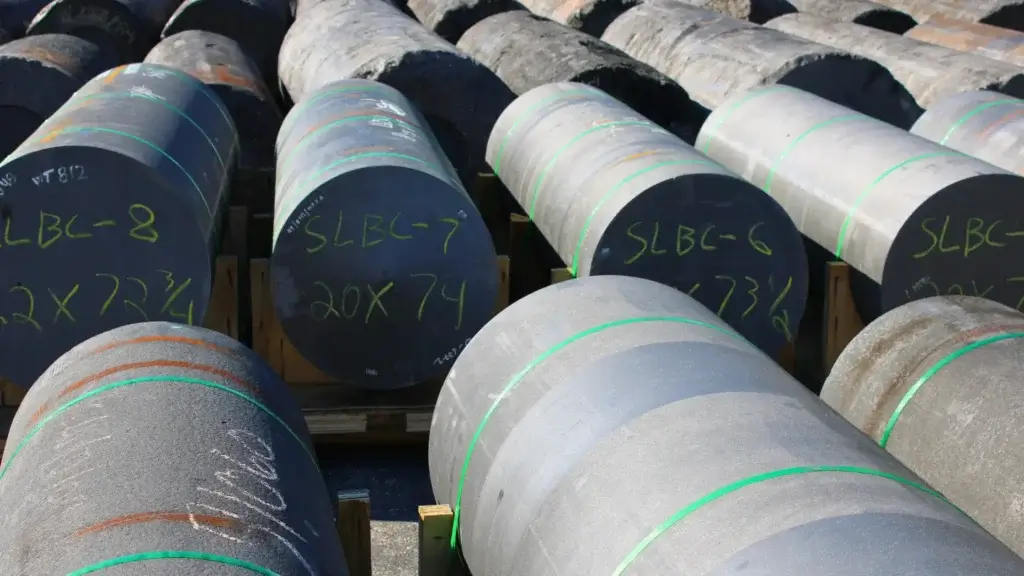

Extruded graphite develops a directional structure during forming, so properties such as strength and electrical resistivity can vary with orientation. Extrusion is also well suited to producing longer sections and consistent cross-sectional profiles, making it practical for many larger industrial applications.
Actual density, flexural strength, electrical resistivity, and other properties vary by individual grade. Engineers should compare grade-specific technical data against the operating conditions and performance requirements of the application before specifying a material.
| Property | Isostatic (Iso-Molded) Graphite | Extruded Graphite |
|---|---|---|
| Grain structure | Fine and relatively uniform | Directional |
| Isotropy | High degree of isotropy | Properties can vary by orientation |
| Strength | Grade-dependent | Grade- and orientation-dependent |
| Electrical resistivity | Grade-dependent | Grade- and orientation-dependent |
| Available sizes | Dependent on grade and production capabilities | Well suited to longer sections and consistent profiles |
| Typical consideration | Uniformity, precision, and dimensional stability | Longer lengths and applications where directional properties are suitable |
Applications for Iso-molded and Extruded Graphite
Fine-grain iso-molded graphite is commonly considered for EDM graphite, semiconductor manufacturing, and other precision applications where uniformity, dimensional stability, close tolerances, and smooth surface finishes are important.
Extruded graphite is often selected for larger cross sections or longer lengths when its directional properties align with the application. Graphite electrodes used in electric arc furnaces are one example.
These materials support applications nationwide, including aerospace and semiconductor manufacturing in the Midwest, defense in the Northeast, and energy operations in Texas.
Where Molded Graphite Fits
Mechanically molded graphite provides another option between these material forms, with its own combination of properties, available sizes, and application considerations.
Ei6 offers several grades and sizes of extruded, molded, and iso-molded graphite through its graphite specialties, giving engineers multiple forms to evaluate against their process requirements.
Selecting Graphite for Your Process
Explore Graphite Materials with Ei6
With more than 50 years of graphite experience, Ei6 supplies extruded, molded, and iso-molded graphite with inventory across the Americas. Ei6 supports applications across EDM, high-temperature processing, aerospace, semiconductor, defense, and energy markets.
Explore Ei6 graphite specialties and talk with the Ei6 team about the material requirements for your application.
