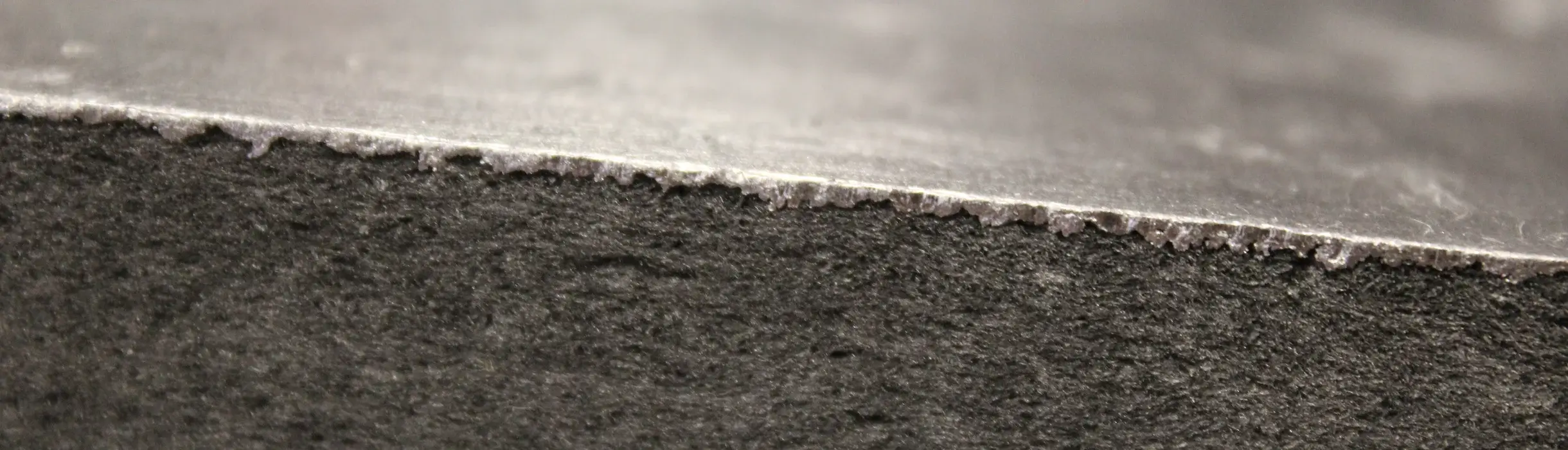

Graphite Insulation
Custom-machined graphite insulation parts and assemblies—cut, finished, and kitted to print for high-temperature applications.
Reliable Thermal Control, Built to Your Print
At Ei6, we take proven graphite insulation materials and turn them into the parts your furnace actually needs—doors, panels, baffles, liners, labyrinths, and matched sets. Expect tight, repeatable tolerances, and packaging that protects delicate surfaces in transit.
Grade selections mirror our distribution portfolio (GRI, GRI-C/CC, GRI-G/GG, Thermshield builds), so material performance is predictable.
GRI Heat Treating Insulation Solutions
What We Machine
Precision-cut insulation components for consistent installs
We machine rigid graphite insulation boards and faced laminates—flat or contoured—then finish, label, and kit by position. The result is faster builds, fewer air leaks, and spares that drop in without rework.
- Panels, doors, baffles, shields, liners, ports, labyrinths, step-downs
- Contour routing, slotting, hole patterns, bevels, recesses
- Lamination and facing: carbon composite (C/CC) or graphite foil (G/GG)
- Edge treatment/rigidization options to reduce dusting.
How We Machine
Clean cuts, consistent thickness, repeatable fit
Insulation is only as good as its fit. We hold practical tolerances for thickness and flatness on large formats, maintain clean edges to reduce dusting, and verify critical dimensions before anything leaves our dock.
- Practical tolerances for large-format boards and rings
- Thickness control across the full panel, not just at coupon size
- First-article checks; measurement reports available on request
- Protective packaging for corners, edges, and faced laminates

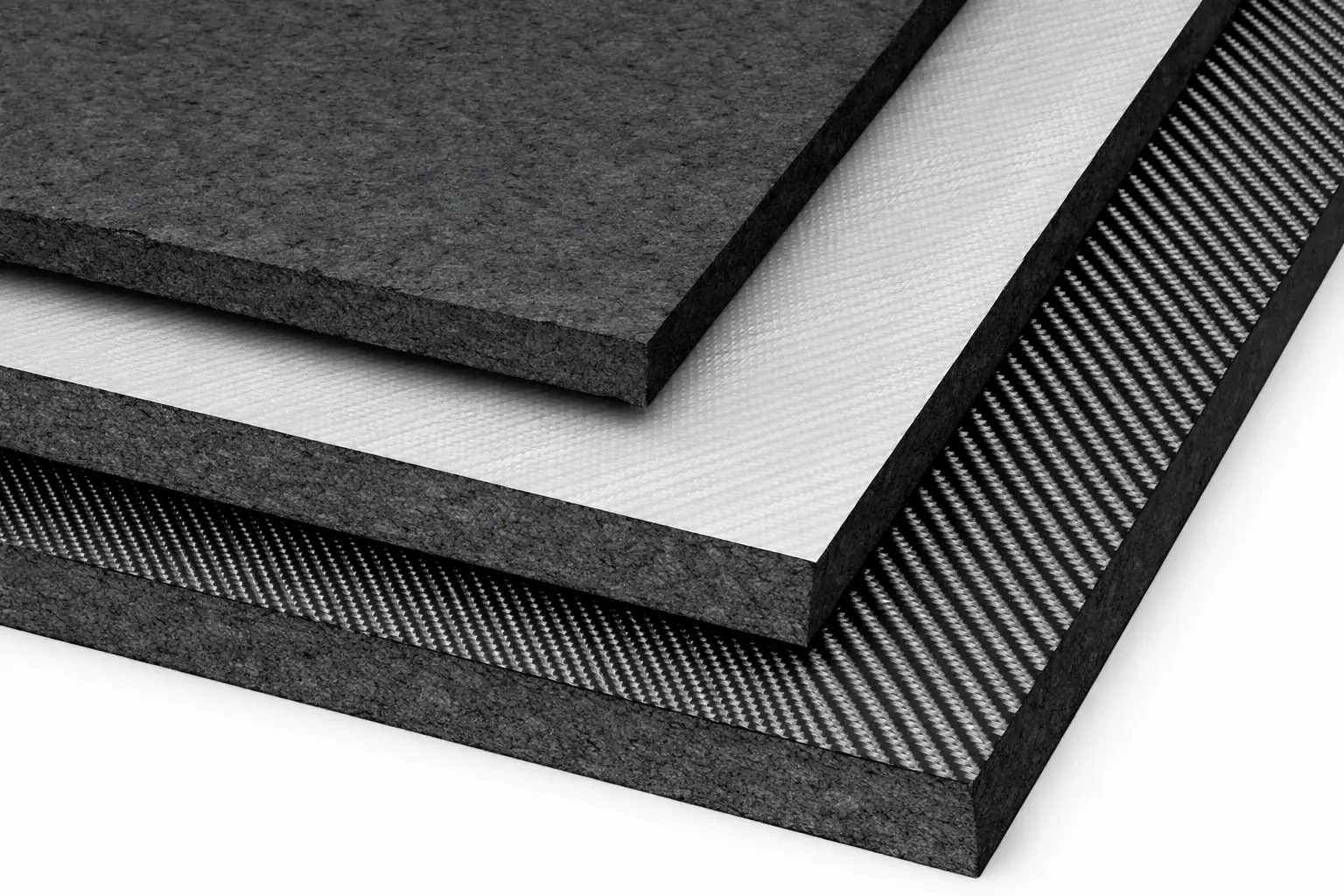

Material We Work With
Designed for heat, wear, and dimensional stability
Start with our uniform GRI rigid board, then add the face that meets your requiremnets: impact resistance, gas barrier, or lower radiative loss. We’ll machine single- or double-faced stacks and assemble them to print.
- GRI (base board): low thermal conductivity, uniform, low ash; anti-dust option available
- GRI-C / GRI-CC: carbon composite-faced for abrasion/impact resistance and longer service life
- GRI-G / GRI-GG: graphite foil-faced for superior gas barrier and minimized radiative heat loss
- Thermshield and GRI/Thermshield: added structural stability and wear resistance for harsh cycles. Typical applications: brazing, sintering, annealing, hardening; vacuum or inert atmospheres.

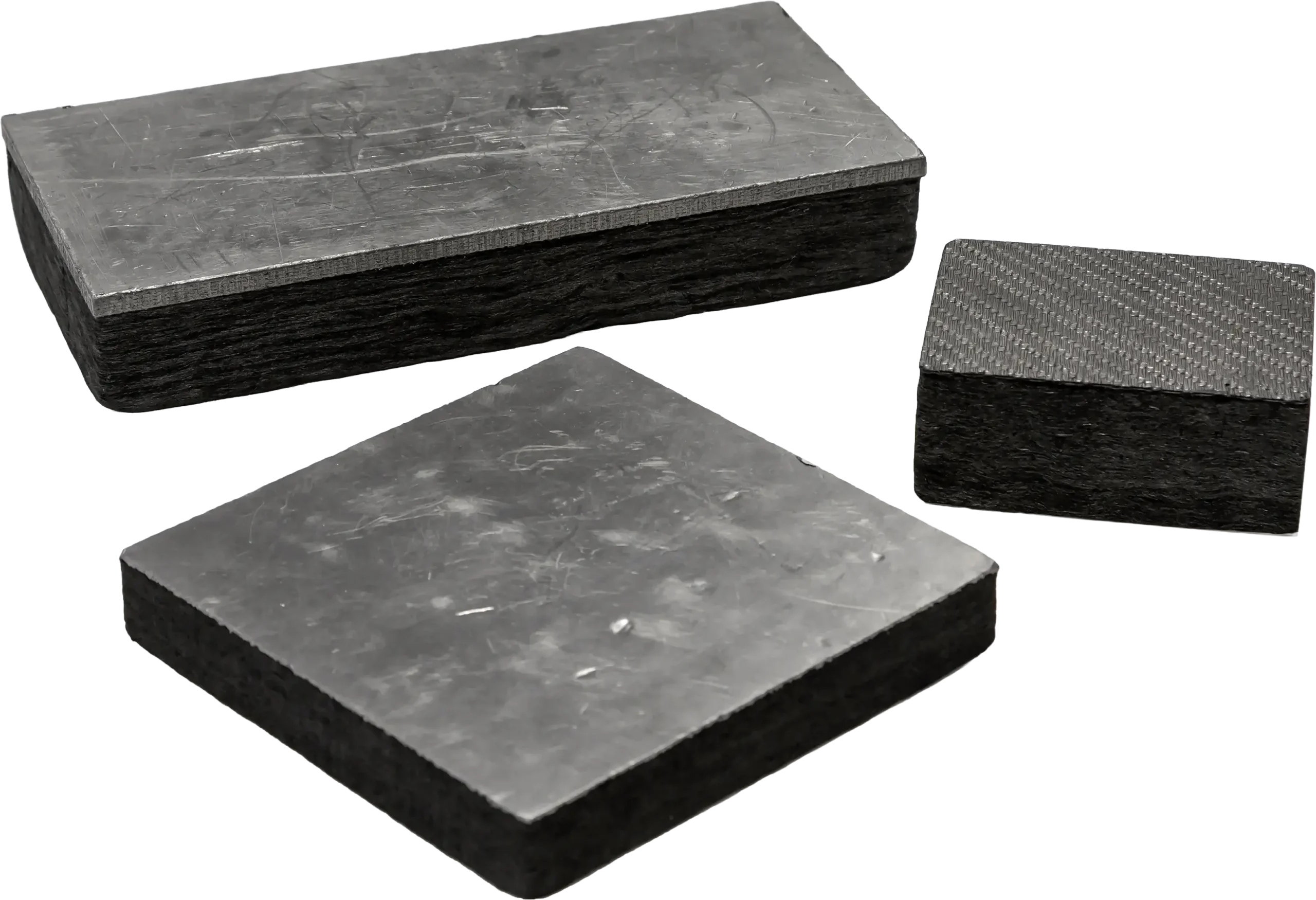

Precision Machining of Graphite Insulation
Less heat loss. Faster changeouts. Fewer surprises.
Dimensional accuracy and clean surfaces improve temperature uniformity, speed up PM windows, and help keep debris out of your work zone. Faced options extend service life in abrasive or high-flow areas.
- Build hot zones faster with cut-to-print panels and matched sets.
- Reduce leak paths with consistent thickness and clean edges.
- Keep maintenance simple with labeled, ready-to-install kits.
- Choose faces (C/CC, G/GG) that stand up to abrasion or gas flow.
Quality, Documentation, and Support
Tell us about your furnace, target temperature, atmosphere, and any erosion or leak issues you’re seeing. We’ll recommend a stack-up (GRI, C/CC, G/GG, Thermshield) and machine a first-article to your tolerances. Quote form below.
